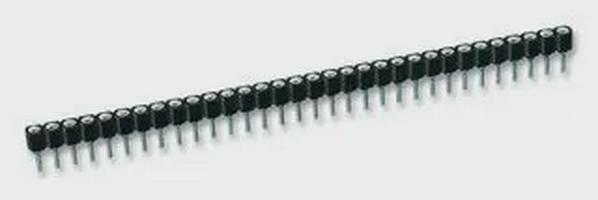

SOCKET SIL 32WAY PC BOARD; Pitch Spacing:2.54mm; No. of Contacts:32Contacts; Gender:Receptacle; Product Range:D01 Series; Contact Termination Type:Through Hole; No. of Rows:1Rows; Contact Plating:Gold Plated Contacts; Contact Material:Brass; SVHC:Lead (15-Jan-2019); Connector Mounting Orientation:PC Board; Connector Type:SIP Socket; Contact Clip Material:Beryllium Copper; Contact Clip Plating:Gold; Contact Resistance:10mohm; Contact Termination:Through Hole Vertical; Current Rating:1A; De-mating Force:1N; External Depth:2.54mm; External Length / Height:7.37mm; External Width:81.28mm; Flammability Rating:UL94V-0; Insulation Resistance:10000Mohm; Lead Spacing:2.54mm; Mating Force:1.8N; Moulding Material:Glass-filled polyester; No. of Mating Cycles:500; Operating Temperature Max:125蚓; Operating Temperature Min:-55蚓; PCB Hole Diameter:0.8mm; Pin Format:DIP; Shell Contact Material:Tin
